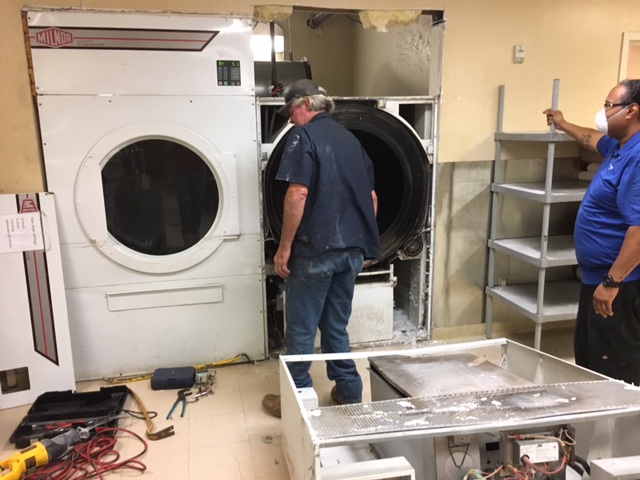

Despite being in the basement and having one inch clearance on a freight elevator we got this 120 lb. Milnor dryer installed before lunch. That's a half-day of the dryer being down for a changeover. Not bad.
If you are looking for CAD drawing (.dwg) files or BIM objects you can find them at Pellerin Milnor's ARCAT page here (arcat.com).
Milnor also has some nicely organized resources on their site (milnor.com).
Finally, sizing machines to the amount of linens produced by hotels or nursing homes is something most distributors will do for free. We are certainly happy to do it for you. For example, knowing the room count and hotel brand we can tell you what size of machines you need to keep up with demand. This goes on to influence what type of room you need to build.
We removed a pair of huge Washex washers from a large hotel in OKC. One was a 180 lb machine and the other 230 lb. Both were from the 80s and weren't lacking in steel.
The machines, because they drained in the center, spanned a drain pit which made removal even more fun.
Because the hotel had filled in their loading dock the washers had to be taken out a side door. The larger machine needed its top cut off to fit.
The hotel went with Milnor washers and new dryers. This will allow them to bring laundry back in-house and save money.
